T70452





T70452
CAM210 Augmented Reality Pack
ClearCruise™ AR is bringing enhanced on water perception to Raymarine’s family of Axiom® multifunction displays. With ClearCruise AR, Raymarine Axiom users can make smarter decisions with navigation objects overlaid directly on Axiom’s high definition video display.
ClearCruise AR video imagery is supported by Raymarine CAM210 HD marine cameras to provide an augmented reality view from any camera position on the vessel. The AR200 video stabilization module includes a precision GPS/GNSS sensor and the same attitude heading reference sensor (AHRS) technology used in Raymarine’s award-winning Evolution™ autopilots. ClearCruise AR accurately displays nearby navigation markers, automatic identification system (AIS) traffic, objects, and waypoints in sync with real-world imagery for instant recognition and making complex navigation and high traffic situations simpler to understand.
With ClearCruise AR, Raymarine Axiom users can make smarter decisions with physical navigation objects overlaid directly on Axiom’s high-definition (HD) video display. FLIR also announced a new video stabilization module, the Raymarine AR200, which integrates with ClearCruise.
Make Smarter Decisions
See critical navigation objects overlaid on HD video. Surrounding AIS-equipped vessel traffic and charted navigation aids are clearly identified with rich graphics on a live, dynamic video image.

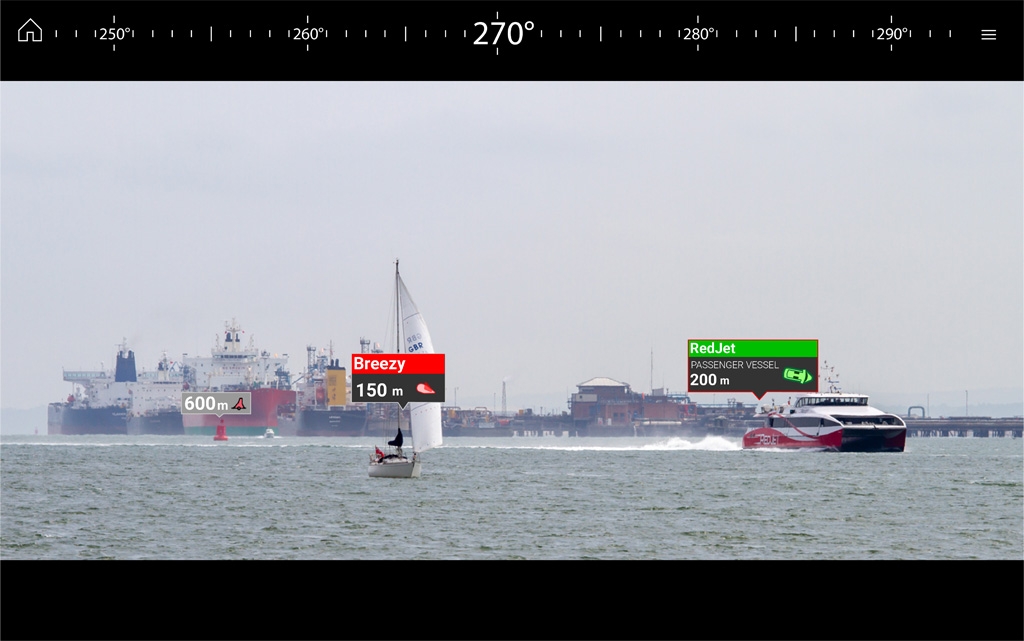

Recognize and Respond to Nearby Marine Traffic

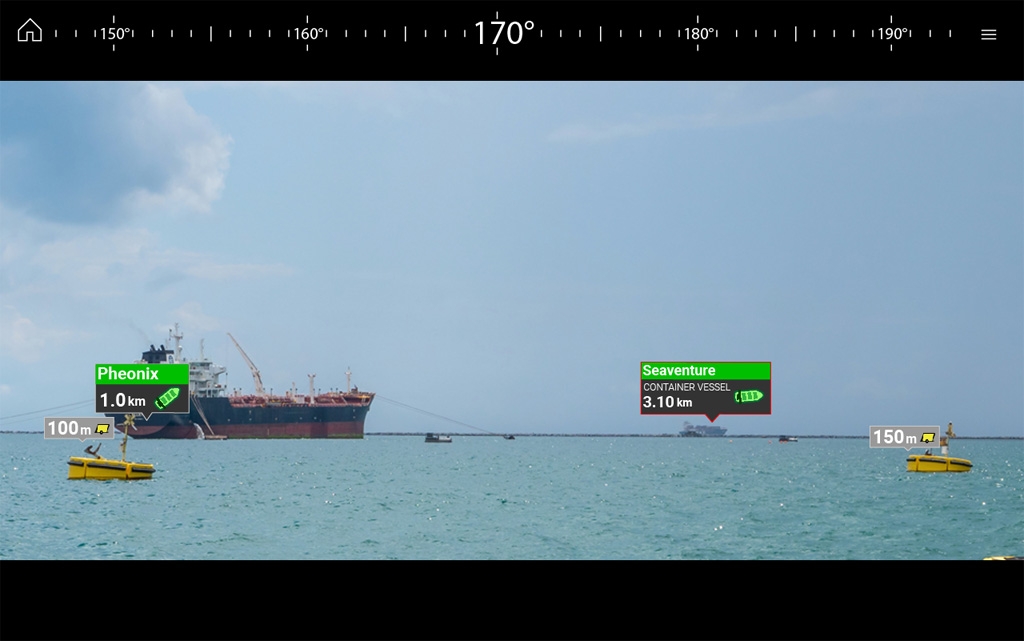

Color-coded labels provide instant identification, status, and risk-assessment Live AIS Targets. ClearCruise AR provides positive identification of AIS equipped vessels on the horizon.

Understand Complex Navigational Solutions

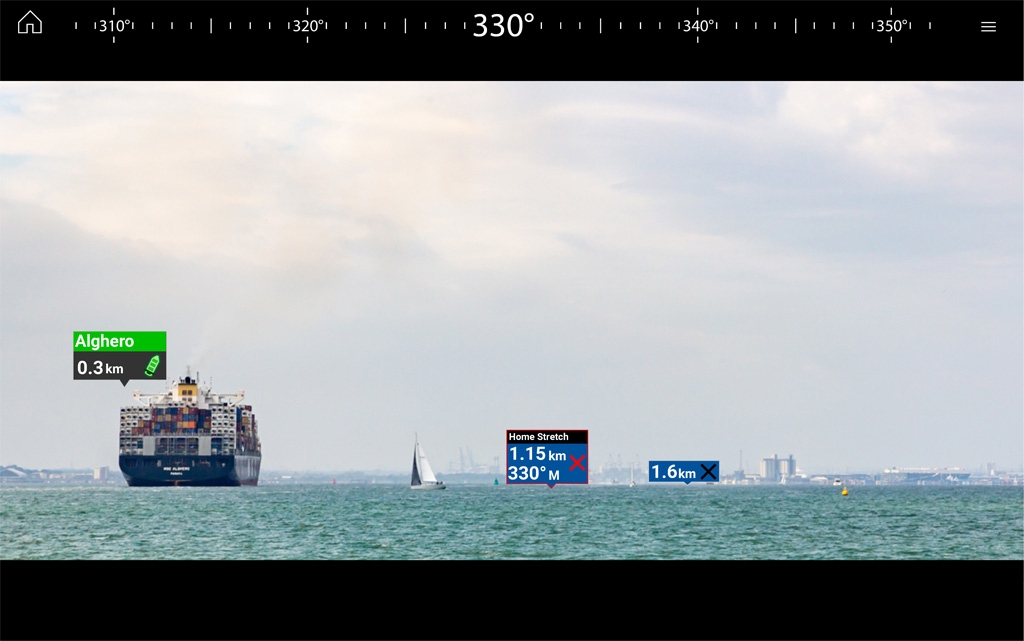

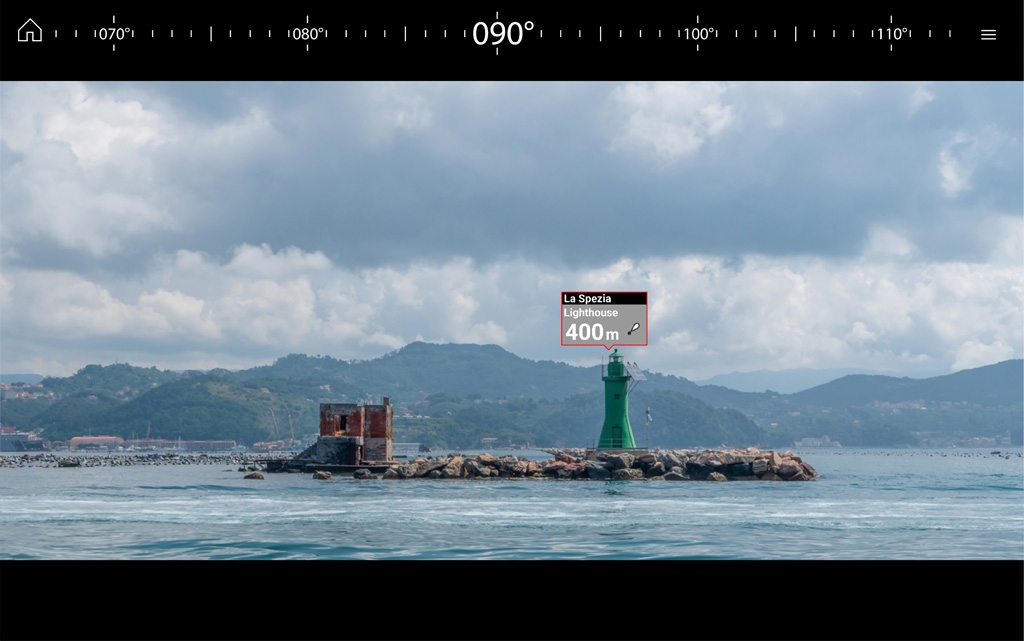

Major chart objects are identified for instant, heads-up recognition. ClearCruise AR technology shows you visually where your saved waypoints and marks are located.

See Your Waypoints in the Real World
Visualize nearby marks and waypoints for easy navigation. ClearCruise AR technology makes it easy to pick out the buoys marking the edges of the safe channel on a hazy day.

Key Features
See critical navigation objects overlaid on HD video |
Surrounding AIS-equipped vessel traffic and charted navigation aids are clearly identified with rich graphics |
Color-coded labels provide instant identification |
Major chart objects are identified for instant, heads-up recognition |
Easy to pick out the buoys marking the edges of the safe channel on a hazy day. |
Specifications
System
CPU |
32-bit ARM9 RISC CPU up to 432 MHz |
Flash / SDRAM |
128 MB / 128 MB |
Camera
Image Sensor |
2.0 Megapixel 1/2.8" SONY progressive scan CMOS(Exmor) |
Total Pixels |
1952(H) x 1116(V) 2.18 Megapixel |
Effective Pixels |
1944(H) x 1104(V) 2.15 Megapixel |
Minimum Illumination |
0Lux (IR On) |
IR Distance |
20m |
Day & Night |
CR |
Lens |
6.0mm Megapixel Board Lens |
Field of View |
Diagonal: 63.6° +/- 3° Horizontal: 33.1° +/- 3° Vertical: 53.3° +/- 3>° |
Video
Video Compression |
H.264 High Profile@4.0, MJPEG –Image quality: 3 Steps |
Resolution |
Up to 1920 x 1080 (Full HD) |
Frame Rate |
H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution |
Video Streaming |
Support multi stream with H.264, MJPEG / Adjustable frame rate / CVBR/CBR in H.264 |
Image Setting |
Day & Night / Auto White Balance / Auto Exposure / Privacy Mask Effects - Colour, Sharpness, Mirror / V-Flip |
System Integration
Security |
Password protection, User access log, HTTPS encryption |
Supported Protocol |
HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP |
Intelligent Video |
Motion detection up to 1920x1080 with 4x3 blocks |
Physical
Power Source |
DC12V/1.5A, PoE(Power over Ethernet): 802.3af |
Power Consumption |
Max. 3.3W / Max 3.5W with IR |
Net Weight |
900g |
LED's |
Power, Network Connection |
Dimensions (W x H x D) |
83.8 mm x 155 mm x 178.1 mm / 3.3 in x 6.10 in x 7.01 in |
Temperature |
Operational: 0°C - 40°C / 32°F - 104°F Storage: -10°C - 50°C / 14°F - 122°F |
In The Box
-
E70346 CAM210 Bullet CCTV Day and Night Video Camera (IP Connected)
-
E70537 AR200 IP Camera Stabilisation Module, for Augmented Reality
-
A80159 RayNet (F) to RJ45 (M) cable - 10m
-
A06034 Backbone Cable 1m
-
A06028 STNG T-Piece Connector
-
