Axiom 7 RV NAV+





Axiom 7 RV NAV+

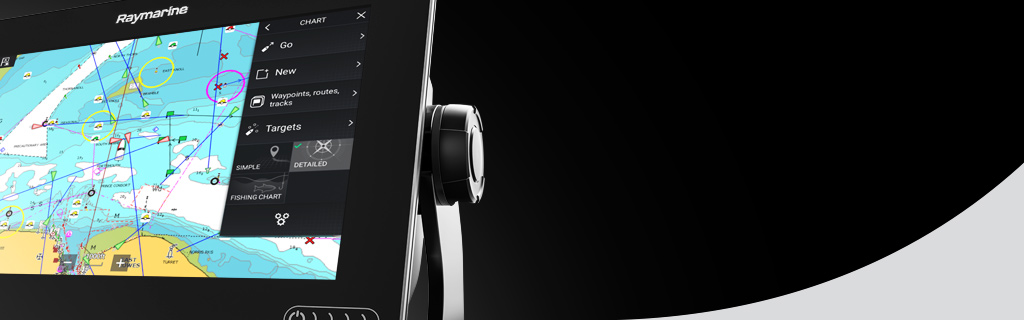

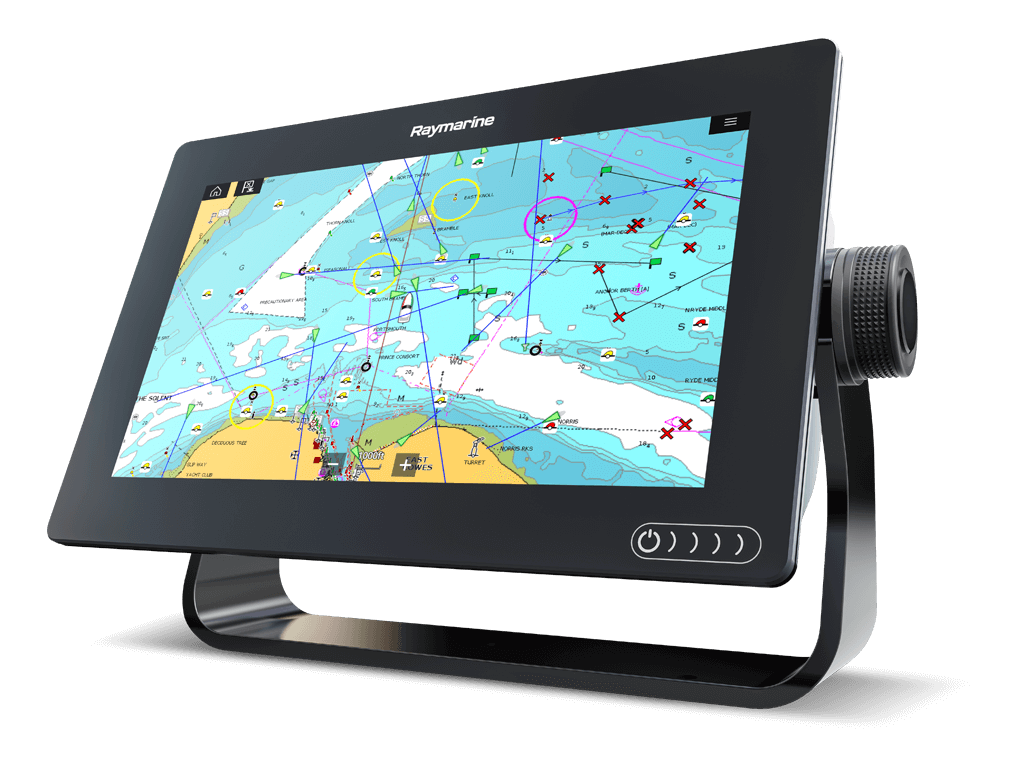

7" Touch Screen Multifunction Navigation Display

A powerful new multifunction navigation system from Raymarine. With built-in RealVision 3D™ sonar, the all new LightHouse 3 operating system, and blazing fast quad core performance, Axiom will transform your time on the water.
Blazing Fast Performance And Power - At Your Finger Tips
Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.
Axiom includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.
Navionics+ (US/CANADA) included.

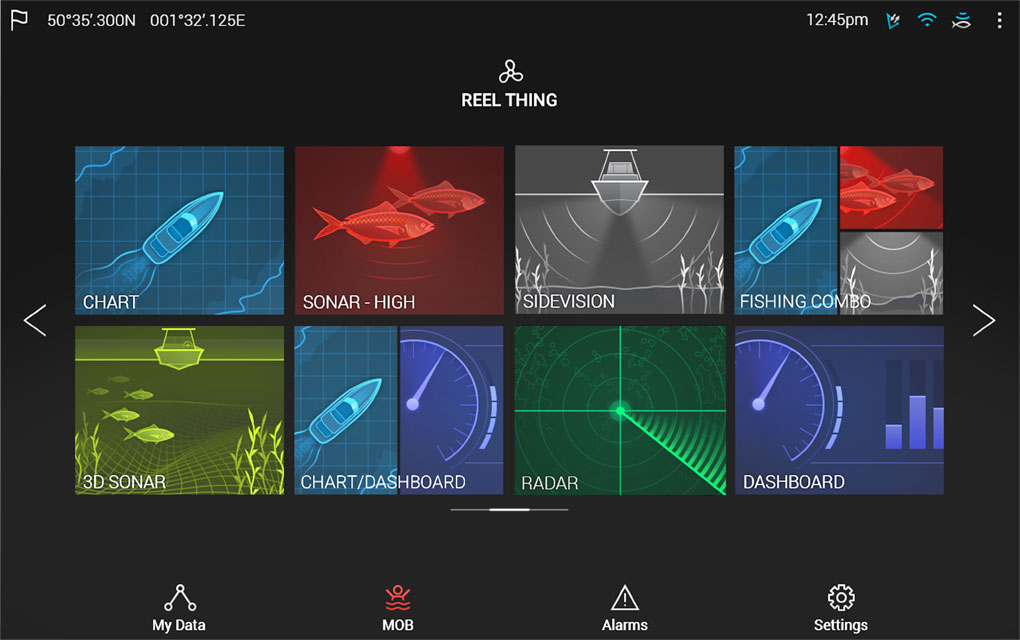

New LightHouse 3 OS
Click Here
New LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface is easily personalized for your style of navigating.

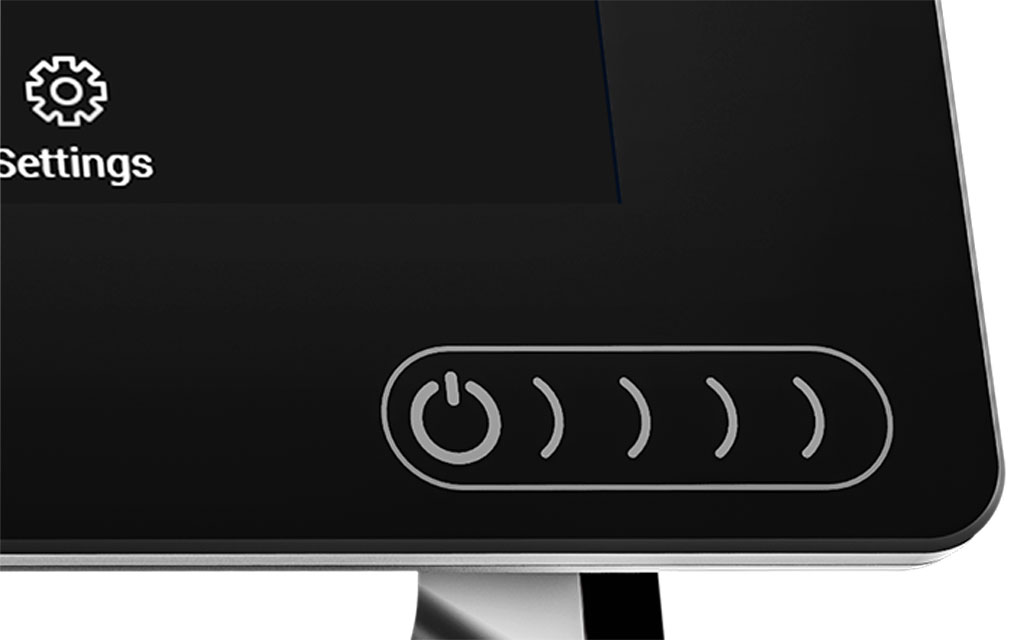

Rugged All-Glass Display
Click Here
Rugged all-glass display optimized for flush or surface mounting. Sleek buttonless design with swipe-to-power control.

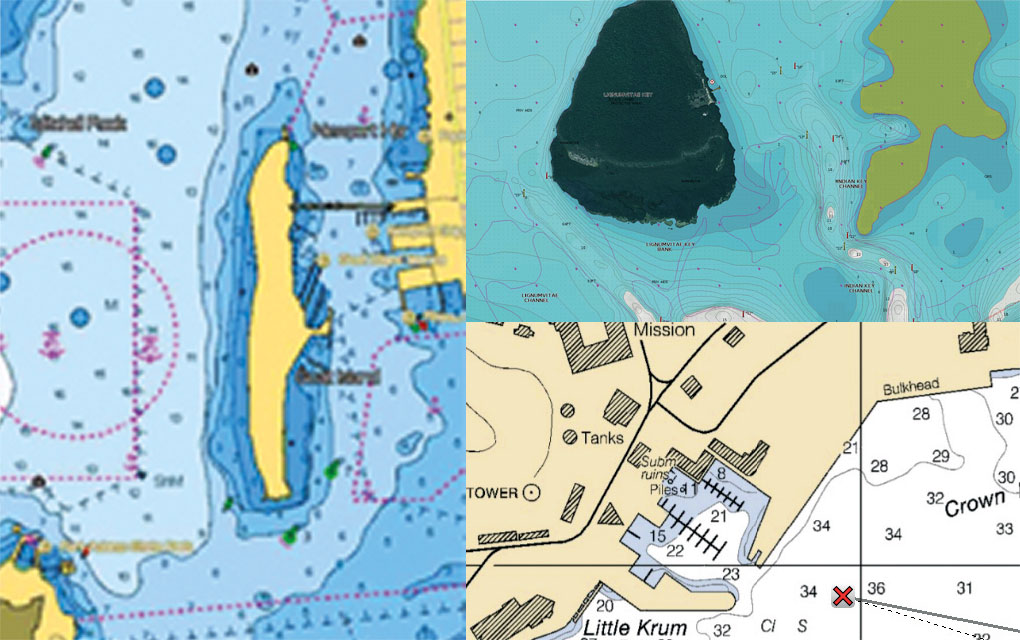

Support For The Best Charts
Click Here
Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more.
Specifications
Display
Display Size |
7.0" Optically Bonded LCD |
Display Resolution |
800 x 480 WVGA |
Display Type |
Multitouch |
Brightness |
1,200 nits |
Viewing Angle |
Degrees: 60 / 70 / 70 / 70 (Top / Bottom / Left / Right) |
Physical
Dimensions |
210 x 142 x 77mm (7.92" x 5.24" x 3.00") |
Weight |
1.52kg (3.35lbs) |
Mounting |
Top, Flush, Front, Bracket |
Waterproof Rating |
IPX6 / IPX7 |
Operating Temperature |
-25deg C to +55deg C (-13deg F to 131deg F) |
Storage Temp |
-30deg C to +70deg C (- 22deg F to 158deg F) |
Power
Voltage |
12V DC (8 V to 16 VDC) |
Power Consumption (Full brightness) |
TBD |
Power Consumption (Powersave Mode) |
TBD |
Sensor
GNSS / GPS |
Built-in GNSS Receiver: GPS/GLONASS- 10Hz 72 Channel |
Sonar Type (Built-in) |
RV model - Built-in RealVision™ 3D + 600W |
Sonar Connection |
RV100 25pin RealVision™ type connector |
Sonar Depth |
CHIRP Sonar = 274m (900 feet) DownVision™ = 183m (600 feet) SideVision™ = 91m (300 feet) RealVision™ 3D = 91m (300 feet) |
External Sonar* |
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet |
Radar* |
Yes - Quantum, Digital, HD Color and Super HD Color Radars |
AIS* |
Yes - NMEA2000 |
Autopilot Control* |
Yes - Evolution Autopilot |
Thermal Night Vision* |
Yes - IP camera input only |
Video / Camera* |
Up to 10 IP Cameras |
Weather* |
GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM (N. America Only) [Weather features available in future Lighthouse 3 software update] |
Audio Integration* |
NMEA2000 / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update] |
Digital Switching* |
Yes - Empirbus |
Remote Control* |
*RMK-10 (A80438) & *RCU-3 (E62351) [*Available in future Lighthouse 3 software update] |
Networking
Ethernet |
1 x 10/100 Mbits/ Network (RayNet) |
NMEA0183 |
Requires suitable adaptor to NMEA2000 network |
NMEA2000 |
1 x NMEA2000 port (DeviceNet microC) |
SeaTalkNG |
Requires A06045 DeviceNet female (F) adapter cable - 400mm |
USB |
1 x USB microAB rear - 1.0A charging, external storage device or RCR-SD/USB Accessory (A80440) |
Wi-Fi |
WiFi - 802.11 b / g / n |
BlueTooth |
Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update] |
Navigation
Cartography |
Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update] |
Tides & Currents |
Requires Navionics or *C-MAP |
Waypoint / Routes / Tracks |
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
Memory
Internal |
4GB Solid State |
External |
1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32) |
Other
Languages |
14 |
Conformances |
NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 |
*Optional Features
-
