RAM Mounts RAM-VB-185-SW1 No-Drill Laptop Mount for the Ford F-250, F-350, F-450, F-550, F-650, F-750 & Excursion
All Ford F-250 to F-750 Super Duty Trucks with Bucket Seats (1999-2013)
Ford Excursion (2000-2005)
Ford Excursion Eddie Bauer (2000-2005)
Ford F-350 Super Duty Trucks (1997)

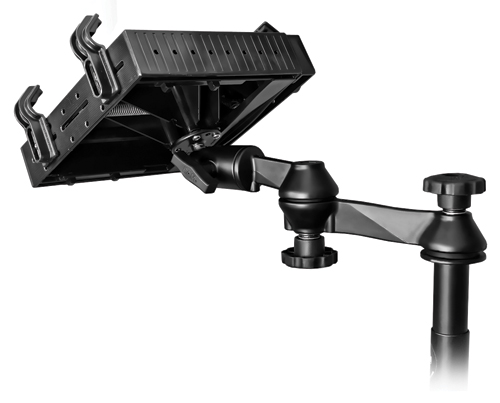

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough Tray™ is spring loaded to accommodate 10" to 16" wide laptops & (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

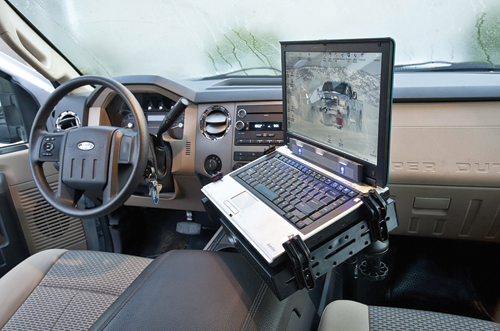

Placement of Mount:
Passenger side floor board, in front of seat

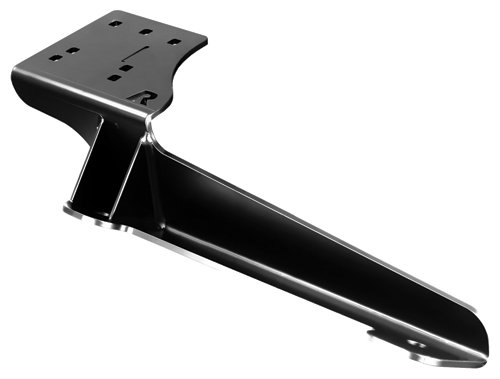

No - attaches to seat studs
High Strength Composite and Powder Coated Steel
A = 18.15", B = 7.05", C = 3.74", Hole Center = 11.5"
If the Tough-Tray™ Laptop Cradle is intended to hold a laptop or device while the vehicle is in motion, we recommend the Secure-N-Motion™ kit.
The RAM-VB-185-SW1 will work on both diesel and regular Ford Super Duty Trucks.
