ID-4100A
VHF/UHF Dual Band D-STAR Transceiver
Since the introduction of D-STAR in 2001, Icom has been committed to improving and advancing the D-STAR experience. The ID-4100A and it’s advance technology does just that! The upgraded user interface and new enhancements provide a product other digital voice modes cannot match!
User friendly

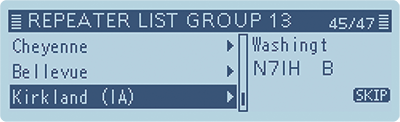

The ID-4100A’s full dot-matrix display gives the user the ability to see a lot of information on the screen. For example, Repeater list or GPS position information are clearly arranged and easy to read.

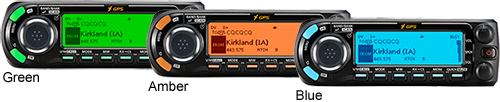

Users can pick between white, green, amber or blue as the backlight color. The backlight night time setting function, allows you to automatically change the display backlight brightness when the designated time comes.
The DV/FM near repeater search function assists you in accessing nearby repeaters, even in areas you visit for the first time. The function searches for nearby repeaters using the repeater memories with the GPS position information. To use the near repeater search function, the position data of the repeater is required. The ID-4100A will ship with the D-STAR repeater memories preprogrammed, but the position data of some D-STAR repeaters may not be entered or exact.
Built-in GPS

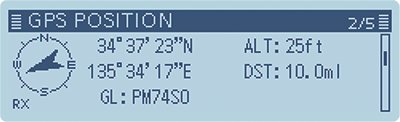

The integrated GPS receiver shows your own position, course, speed and altitude on the display and can be used for exchanging position reports, D-PRS and searching for nearby repeaters.
Voice & data storage
Add a microSD* card to store various information including voice memory, TX voice message, QSO log, RX history log, and GPS log data. Memory channels and other settings can be saved and loaded into the transceiver.
* MicroSD card is sold separately.
Android™ and iOS™ apps available
Install the UT-137 Bluetooth® board and download the RS-MS1I (for iOS™ devices) or RS-MS1A (for Android™ devices) to enable you to wirelessly connect to the ID-4100A and remotely set the DR functions, link with a map application, and send/receive messages over the DV mode. In addition, pictures taken by a smart device can be transmitted via the DV Fast Data mode or DV mode.
Key Features
General
|
Data place in voice frames transfer data 3.5 times faster (3480 bps) than in the conventional DV mode (with voice) |
|
Terminal mode and access point mode |
|
The QUICK key allows instant access to menus listing dedicated functions depending on mode |
|
Multiple scan functions for Memory/Bank scan, Full scan, Band scan, Program scan, Program link scan, Duplex scan Tone scan, and DR scan |
|
16 channels of DTMF memory (24-digit) |
|
CTCSS/DTCS signaling with the split tone functions (analog mode) |
|
8.33 kHz air band channel reception |
|
Auto repeater function |
Specifications
General
|
Frequency Coverage |
TX: 64W x 75H x 31D mm
RX: 118–174, 230–550 MHz*
*Guaranteed range 144–148, 430–450 MHz |
|
Type Of Emission |
F2D, F3E, F7W |
|
Mode |
DV, FM, FM-N, AM (RX only), AM-N (RX only) |
|
No. Of Memory Channels |
1000 regular channels, 4 call channels, 50 program scan edges, 1500 repeater memories and 300 GPS memory |
|
Operating Temperature Range |
–10°C to +60°C; 14°F to +140°F |
|
Frequency Stability |
±2.5 ppm (–10°C to +60°C on the basis of 25°C) |
|
Voice Coding Speed |
2.4kbps |
|
Power Supply Requirement |
13.8 V DC ±15% |
|
Current Drain |
Transmit: 13.0 A
Receive: 1.2 A/0.9 A (Max. audio/Stand-by) |
|
Antenna impedance |
50 O (SO-239) |
|
Dimensions (W × H × D) |
Main unit + Controller 150 × 40 × 171.9 mm; 5.9 × 1.6 × 6.8 in
Controller 122 × 40 × 29.9 mm; 4.8 × 1.6 × 1.2 in
(W×H×D, Projections are not included.) |
|
Weight |
Main Unit 1.1 kg; 2.4 lb
Controller 100 g; 3.5 oz |
Transmitter
|
Output Power |
50 W, 15 W, 5 W (Hi, Mid, Low) |
|
Max. Frequency Deviation |
±5.0 kHz/±2.5 kHz (W/N) |
|
Spurious Emissions |
Less than –60 dBc |
|
Microphone Impedance |
600 O (8-pin modular) |
Receiver
|
Intermediate Frequencies |
46.35 MHz/450 kHz (1st/2nd) |
|
Sensitivity |
FM, FM-N: Less than 0.18 µV (amateur bands at 12 dB SINAD)
DV: Less than 0.22 µV (at 1% BER) |
|
Squelch Sensitivity |
Less than 0.13 µV (threshold) |
|
Selectivity |
FM, FM-N: More than 60 dB/55 dB
DV: More than 50 dB |
|
Spurious And Image Rejection |
More than 60 dB |
|
Audio Output (at 13.8V DC) |
More than 2.0 W (10% distortion, 8 O load) |
|
Ext. Speaker Connectors |
2 conductor 3.5 (d) mm (1/8")/8 O |
|
Receiver Sensitivity
FM/FM-N (12dB SINAD) |
137–159.995 MHz Less than 0.32 µV
160–174.000 MHz Less than 0.32 µV
230–259.995 MHz Less than 1.8 µV
260–321.995 MHz Less than 0.56 µV
322–374.995 MHz Less than 0.56 µV
375–399.995 MHz Less than 0.56 µV
400–499.995 MHz Less than 0.32 µV
500–550.000 MHz Less than 0.56 µV |
|
Receiver Sensitivity
AM/AM-N (10dB S/N) |
118–136.991 MHz Less than 1.0 µV
260–321.995 MHz* Less than 1.8 µV
230–259.995 MHz* Less than 5.6 µV
322–374.995 MHz* Less than 1.8 µV
* Only AM mode |
In The Box
- ID-4100A
- HM-207S Hand microphone
- OPC-837 Controller cable
- OPC-345B DC power cable
- Microphone hanger and spare fuses
- Controller bracket, MBA-8 (Deluxe version only)
Please note the mobile body mounting bracket is not included (see optional MBF-4).
