IC-PW2





IC-PW2
HF/50 MHz All Band 1 kW Linear Amplpifier
Key Features
The latest LDMOS effortlessly provides 1 kW output at full duty cycle, even for extended periods of time |
Six antenna connectors enable using a variety of antennas for multiple bands |
When connected to Icom radios, all settings are automatically completed |
A LAN port for remote control operation from a PC |
2×6 antenna selector realizes SO2R (Single Operator Two Radios) operation with only one amplifier |

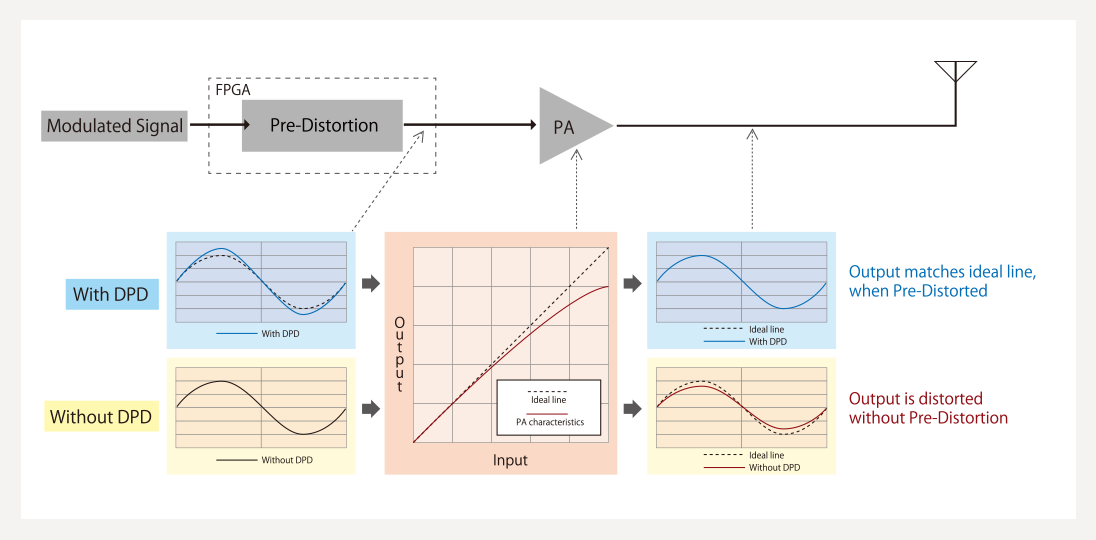

Super low-distortion output with superior IMD (Intermodulation Distortion) |
Simultaneous band data output for both Main and Sub bands |
Touch screen colour TFT LCD enables intuitive setting changes |
Specifications
General
Frequency coverage |
1.800–1.999 MHz 3.500–3.999 MHz 7.000–7.300 MHz 10.100–10.150 MHz 14.000–14.350 MHz 18.068–18.168 MHz 21.000–21.450 MHz 24.890–24.990 MHz 28.000–29.700 MHz 50.000–54.000 MHz |
Output power |
1 kW (180–264 V AC) 500 W (90–132 V AC) |
Driving power |
Maximum 100 W |
Power supply requirement |
90–132 V AC (50/60 Hz) 180–264 V AC (50/60 Hz) |
Spurious emissions |
Less than –60 dB (HF bands) Less than –70 dB (50 MHz band) |
Input impedance |
50 O |
Matching impedance range |
16.7–150.0 O (from HF to 50 MHz band) |
Tuning accuracy |
VSWR 1.5 : 1 or less |
Usable temperature range |
–10 °C to +40 °C (14 °F to +104 °F) |
