Fixed Mount VHF and AIS Receiver Combo with NMEA 2000 Connectivity

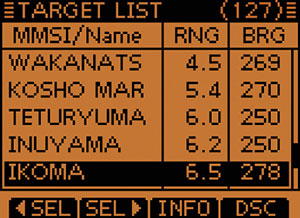

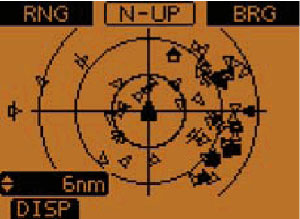

Integrated AIS Receiver: With an integrated AIS receiver, the IC-M506 can show real-time AIS vessel traffic information on the display. The AIS target call function allows you to easily set up a DSC individual call. The Plotter, Target list and Danger list can be toggled on the display.
NMEA 2000™ Connectivity: With the plug-and-play functionality of NMEA 2000, the ICM506 can easily connect to a NMEA 2000 network. The ICM506 can receive and transmit GPS (position, course (COG) and speed (SOG)), AIS report and DSC call information data and transmit radio frequency and PGN list data on the network. Using this function, the IC-M506 can convert NMEA 0183 GPS data to NMEA 2000 data for other equipment.
Last Call Voice Recording: The last call voice recording function automatically saves the last two minutes of the last incoming call. You can replay the received call, and not miss any incoming call.
Active Noise Cancelling: Using digital signal processing technology, the built-in bidirectional active noise cancelling provides superb performance. It reduces background noise to up to 90% in the received signal and 30% fixed in the transmitting signal. The function OFF setting is also possible.
Intuitive Menu-Driven User Interface: The intuitive software key functions provide easy andfast operation to control the multiple functions of the IC-M506. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons.
25W Two-Way Hailer: When connected to an external hailer horn, you can talk to people on the deck or shore from the radio’s microphone and can hear people’s reply via the hailer speaker. The RX hailer function allows you to monitor the received audio from the hailer horn. The built-in 25W amplifier increases your talk power, making it loud and clear.
Built-in Horn (Automatic & Manual): Foghorn feature is built-in via the external Hailer horn. Four horn patterns are selectable for the automatic horn function.
IPX8 Submersible Plus™: The IC-M506 and supplied HM-205B/RB microphone can withstand 1m (3.2ft) depth of water for 60 minutes.Other Features:
- Auto and manual foghorn function
- Simple remote control speaker-microphone, HM-205B/RB
- 15W audio output power (with external speaker)
- Weather channels with alert function (USA version only)
- AquaQuake™ draining function
- Optional voice scrambler, UT-112 for private conversation
- MA-500TR AIS transponder and MarineCommander™ compatible
- AIS receiver and NMEA 2000 interface units are options, depending on version.
- HM-195B (Black)
- HM-195SW (Super white)
