6 Band Vertical HF Fixed Station
10, 15, 20, 30, 40 and 75 or 80 Metres

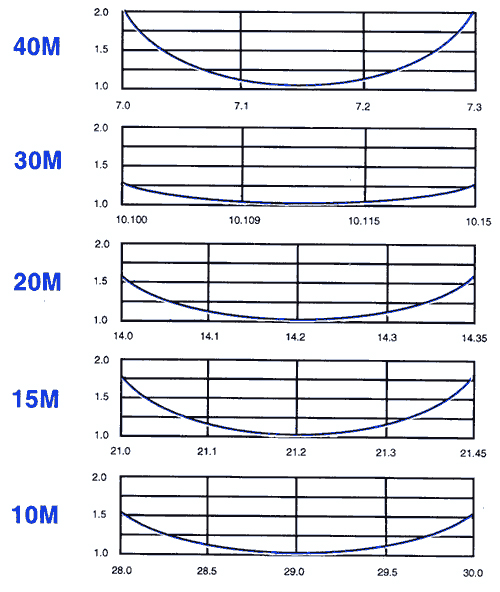

Bandwidth at it's broadest! VSWR 2:1 or better at band edges on 10-40 metres. Up to 100 kHz. on 75/80 metres. Solid one inch fibreglass trap forms for optimum electrical and mechanical stability. All sections 1.25" heavy wall, high strength aluminum. Extra heavy duty aluminum mounting bracket with low loss, high strength insulators. Easiest assembly and tuning of any multi-band vertical. Feed with any length 50 ohm coax.Electrical:
- VSWR: 2:1 at band edges
- Bandwidth: up to 100 kHz on 75/80 metres
- Power: full legal limit SSB or CW 1000 Watts
- Length: 24' long
- Weight: 16.5 lb.
- Mounting:Ground mount with or without radials or elevated mount with radials
Good all around HF vertical
This is a great vertical to backup your QTH setup. Some days only a vertical will do and this is one of those that fit that bill. While it takes a bit to tune this antenna up, this antenna is fully capable of great DX contacts. I can get to South Africa with this Antenna. The ONLY reason this antenna loses a star and this may not be fully fair is the time to tune this antenna. It will take you several months of trial and error and a GOOD antenna analyzer to get this tuned right across 10 - 40m and then 80m. DX Engineering has a good guide manual for sale for this. Recommended buy this antenna!!
