ECHOMAP™ Ultra 122sv





ECHOMAP™ Ultra 122sv
12” Touchscreen Chartplotter With GT54UHD-TM Transducer
Equipped with Our Premium Sonar Capabilities
-
12” keyed-assist touchscreen combo includes all-in-one transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars
-
Built-in support for the full line of Panoptix™ sonars and the Panoptix LiveScope™ scanning sonar system, including Panoptix LiveScope LVS12 sonar
-
Share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units
-
Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
-
Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app
-
NMEA 2000® connectivity and support for heading sensors, autopilots, digital switching, FUSION-Link™ audio system and more

The ECHOMAP Ultra 122sv combo, with its bright, sunlight-readable 12” keyed-assist touchscreen display, has all the tools you need for successful fishing. It includes an all-in-one transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars. It also supports optional premium BlueChart® g3 charts and BlueChart g3 Vision cartography with integrated data from Navionics®.
Panoptix Sonar Support

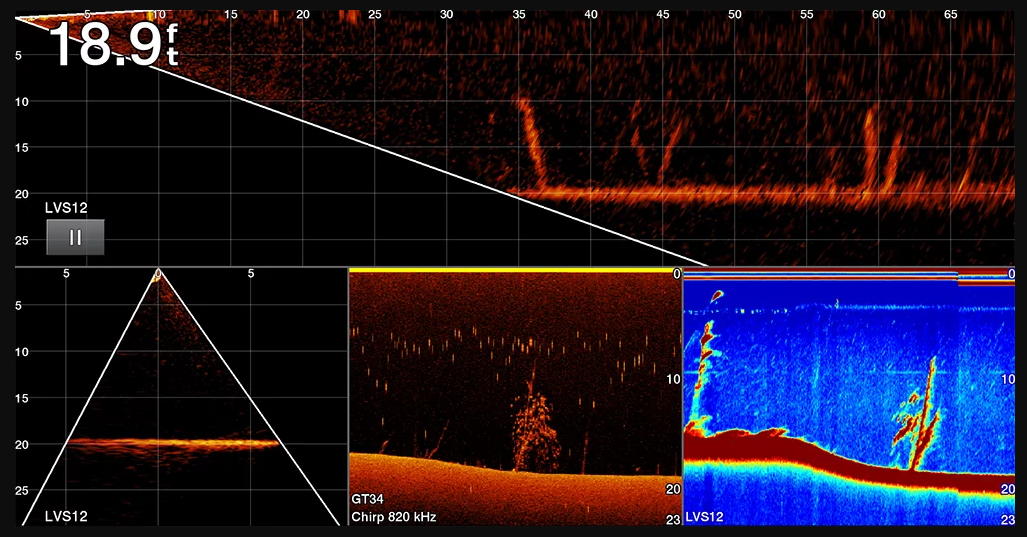

The ECHOMAP Ultra 122sv combo also supports optional Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix all-seeing sonar transducers. It also supports the Panoptix LiveScope system.
Share Sonar, Waypoints and Routes
Have more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units.
Panoptix Sonar Support

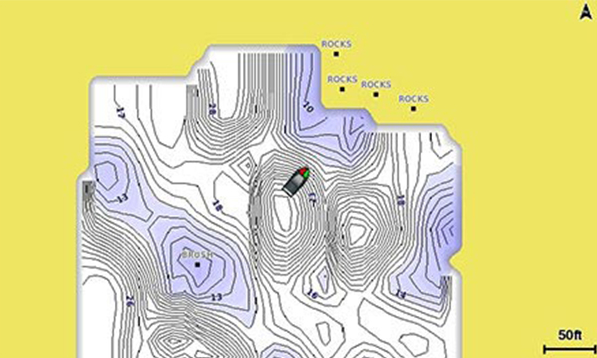

Instantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.
Upgrade to the Best Maps on the Water

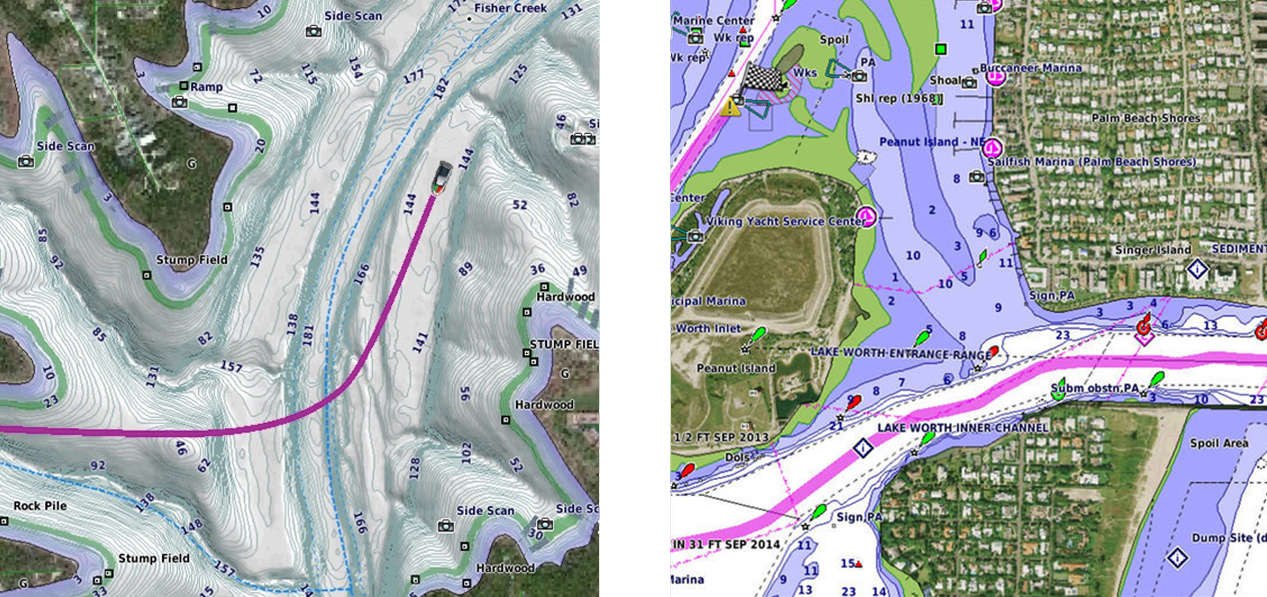

Upgrade the preloaded worldwide basemap to optional premium BlueChart g3 charts or BlueChart g3 Vision cartography with integrated data from Navionics, which add Auto Guidance technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.

The Ultimate Connected Boating App

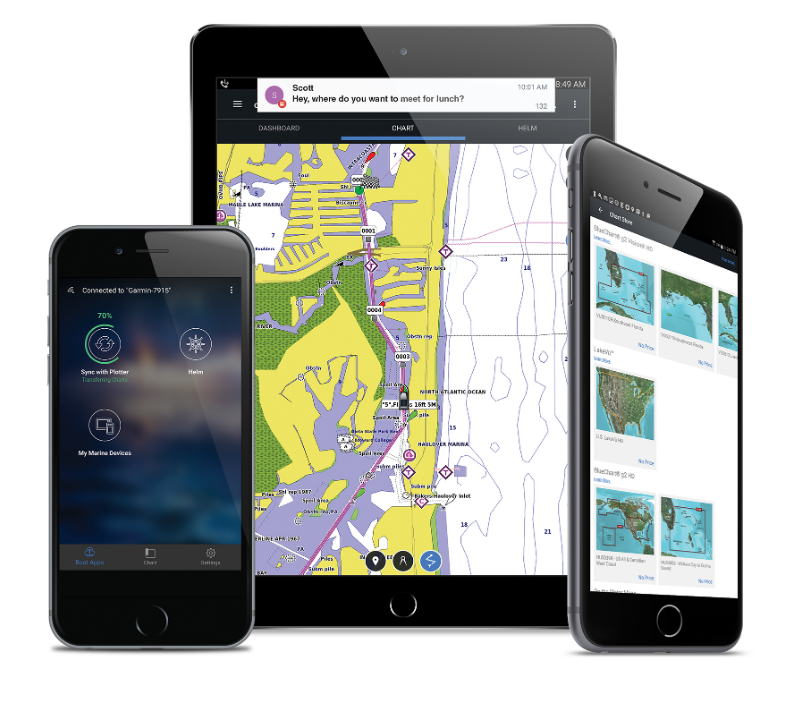

Built in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications² on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.
Take Your ECHOMAP Ultra with You
When you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.
Specifications
General
Physical dimensions |
13.4" x 9.0" x 3.9" (341 x 229 x 98 mm) |
Weight |
10.3” x 6.4”; 12.1" diagonal (26.1 cm x 16.3 cm; 30.7 cm diagonal) |
Display resolution |
1280 x 800 pixels |
Display type |
WXGA display |
Weight |
5.5 lbs (2.5 kg) |
Water rating |
IPX7 |
Polarized Support |
Yes |
Power consumption |
26 W |
Antenna |
Internal or external over NMEA 2000 |
Mounting options |
Bail or flush |
Receiver |
10 Hz |
Garmin Marine Network™ ports |
2 (large connector) |
Maps & Memory
Accepts data cards |
2 microSD™ cards |
Waypoints |
5,000 |
Routes |
100 |
Track log |
50,000 points; 50 saved tracks |
Outdoor Recreation Features
Tide tables |
Yes |
Chartplotter Features
Garmin Sonar compatible |
Yes |
Supports AIS (tracks target ships position) |
Yes |
Supports DSC (displays position data from DSC-capable VHF radio) |
Yes |
Supports FUSION-Link™ compatible radios |
Yes |
GCV™ Black Box sonar support |
Yes |
ActiveCaptain compatible |
Yes |
Sailing Features |
Yes |
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable |
Yes |
Dual-beam (77/200 kHz) sonar capable |
Yes |
Frequencies supported |
|
Transmit power |
600 W (RMS) / 4,000 W (peak to peak) |
CHIRP sonar technology |
Yes (Built-in) |
ClearVü |
Yes |
SideVü |
Yes |
Maximum depth |
2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) |
Bottom lock (shows return from the bottom up) |
Yes |
Water temperature log and graph |
Yes |
Sonar recording |
Yes |
Sonar history rewind |
Yes |
Connections
NMEA 2000® compatible |
Yes |
Transducer pin numbers |
12 |
NMEA 0183 input ports |
1 |
NMEA 0183 output ports |
1 |
Wireless connectivity |
Yes |
In The Box
-
ECHOMAP Ultra 122sv with worldwide basemap
-
GT54UHD-TM transducer
-
Power/data cable
-
Tilt mount with quick release cradle
-
Flush mount
-
Protective cover
-
Hardware
-
Documentation
-
