aera 796
Part #
GAR-AERA796
Manufacturer
Garmin
UPC
Availability
This product requires special order.
Average Rating





0.0/5 from 0 reviews
Our Price
$2,779.99

3-D Navigation with MFD and EFB Capability
See in Virtual 3-D
Revolutionary new 3D Vision technology shows a virtual 3-D behind-the-aircraft perspective of surrounding terrain derived from GPS and the onboard terrain database — a feature previously only available in our panel-mount avionics. Simply slide your finger across the touchscreen to rotate the view and show land and water features, obstacles, runways and airport signposts in relative proximity to the aircraft.
Using its forward-looking terrain avoidance capability, aera 796 predicts in advance where towers or obstacles may exist and shades the landscape with amber or red overlays to indicate those areas. 3D Vision and other flight data are presented smoothly and continuously thanks to the its internal GPS that provides position updates 5 times per second (5 Hz).

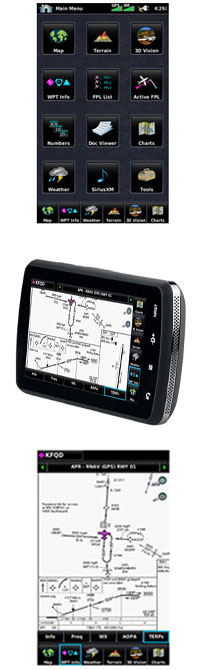

aera 796’s bright 7" diagonal high-definition sunlight-readable display makes this detailed mapping easy to see in any lighting conditions and works in both portrait and landscape mode. The physical design has been optimized to fit on the yoke or for use as a knee-mounted device. There are only 4 touch keys on the bezel for quick navigation to the most frequent used functions. All other functions are quickly accessed through intuitive onscreen icons with labels. This unique touchscreen interface even allows you to quickly pan across the map screen and pinch to zoom.
Go Paperless
aera 796 fullfills the role of either a Class I or Class II electronic flight bag, greatly reducing the need to rely on paper charts in the cockpit. Initial georeferenced VFR sectional and IRF enroute charts come preloaded that show your aircraft’s position overlaid directly on the relevant chart. Optional European VFR and IFR charts are also available, as well as VFR terminal charts. When in IFR map mode, the 795 can display victor airways, jet routes, minimum enroute altitudes and leg distance, much like what’s found on traditional enroute charts. Initial georeferenced Garmin FliteCharts provide approach charts and airport diagrams for the U.S., while pilots who prefer Jeppesen charts and diagrams can use optional Garmin ChartView service, which utilizes Jeppesen’s extensive library to provide global georeferenced charting capabilities.
aera 796 also includes a robust document viewer, so you can easily pull up weights and balances, flight manuals, raster charts or a variety of electronically formatted materials you download to the device. A “scratch pad” feature also allows you to quickly jot down clearances and other pertinent notes while en route, while a checklist viewer allows you to create customized and interactive electronic checklists.
Enhance Situational Awareness
aera 796’s built-in terrain and obstacle database not only shows contours in 3D Vision mode, but also allows for a top-down view of your entire route. To help you navigate around unfamiliar airports, SafeTaxi® provides detailed taxiway diagrams and position information for many U.S., European or Canadian airports, while a private airport and heliport database greatly expands your emergency “nearest” options. FBO, ground transportation, lodging and other facility information for most U.S. airports are also available through preloaded AOPA Airport Directory Data; international pilots may choose to opt for global AC-U-KWIK airport directory data instead.
Access Weather and Radio
With the optional GXM 42 antenna, aera 796 offers access to high-resolution weather and audio entertainment right in the cockpit (subscription required). An optional GDL 39 series datalink can also provide access to ADS-B weather and traffic. All of this data can be overlaid directly onto navigation and topographic map databases.
Expand Your Portable
With 2 serial ports, aera 796 allows for simultaneous connectivity with other hardware. With an optional GTX 330 Mode S Transponder Interface, you can access Traffic Information Service (TIS) alerts, where available, right on the device while also sending frequencies to a GTR 225 Comm radio or GNC 255 Nav/Comm. It can even relay position reports to other devices. By adding optional City Navigator maps, both helicopter and fixed-wing pilots add street addresses as waypoints or direct-to destinations. The device includes an SD™ card slot for easy updates and expansions; update, manage and purchase the latest aviation data for your aera through flyGarmin.
Garmin aera 796 Physical & Performance: | |
Unit dimensions, WxHxD: | 5.1"W x 8.0"H x 1.5"D (13.0 x 20.3 x 3.8 cm) |
Display size, WxH: | 3.6"W x 6.0"H (9.1 x 15.2 cm); 7.0" diag (17.78 cm) |
Display resolution, WxH: | 480 x 800 pixels |
Display type: | dual-oriented, bright, color WVGA TFT with adjustable backlighting and selectable screen orientation |
Weight: | 26.4 ounces (748 g) with battery pack; 18.3 ounces (519 g) without battery pack; 12.7 ounces (361 g) RAM mount |
Battery: | rechargeable, replaceable Lithium-ion |
Battery life: | up to 3 hours with full backlight and GXM 40 connected (8 hours with 50% backlighting and XM connected) |
Water rating: | No |
Voltage range: | 11-40 |
Receiver: | high-sensitivity with WAAS position accuracy |
IFR or VFR: | VFR |
Garmin aera 796 Maps, Databases & Memory: | |
Basemap: | yes |
Jeppesen® database: | yes |
Types of Jeppesen databases: | full and ARTCC, FSS frequencies and final approach waypoints |
Jeppesen database coverage areas: | Americas |
Preloaded Obstacles database: | yes (U.S. and Europe only) |
Preloaded Terrain database: | yes |
Preloaded SafeTaxi™ airport diagrams: | yes (U.S only) |
Preloaded AOPA Airport Directory: | yes (U.S only) |
Preloaded low & high altitude enroute airways: | yes |
Preloaded Garmin FliteCharts®: | Yes (U.S. only) |
Preloaded private airports: | yes (U.S only) |
Preloaded street maps: | no |
Ability to add maps: | yes |
Accepts data cards: | yes (microSD cards) |
Built-in memory: | internal solid state |
Waypoints/favorites/locations: | 3,000 |
Routes: | 50 |
Garmin aera 796 Features: | |
Moving map: | yes |
Patented panel page: | yes |
Built-in HSI (GPS-based): | yes |
IFR map mode: | yes |
Traffic Information Services (TIS) alerts compatible: | yes |
Audible terrain alerts: | yes |
Terrain resolution: | standard |
Smart Airspace Feature (generates and displays altitude-sensitive alerts): | yes |
Separate serial and USB interfaces: | yes |
Automatic logbook: | yes |
Voice prompts (e.g. "Turn right in 500 ft."): | no |
Lane assist (guides you to the proper lane for navigation): | no (auto mode) |
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."): | no |
3-D map view: | no |
Custom POIs (ability to add additional points of interest): | no |
Bluetooth® wireless technology (connect to your phone for hands-free calling): | yes |
Speed limit indicator (displays speed limit for most major roads in the U.S. and Europe): | no |
FM traffic compatible: | no |
Custom POIs (ability to add additional points of interest): | no |
XM WX Weather & Radio for U.S. compatible: | yes |
¹Subscriptions are required for optional XM weather and audio entertainment packages (sold separately).
In the Box
