aera 500

Garmin aera 500
Garmin’s aera series of dual-duty GPS portables offer easy transition from flying to motoring – by combining the best in moving-map display features with intuitive, menu-driven touchscreen control. With aera, fingertip navigation has entered a whole new era: One that streamlines operation. Eliminates knobs and buttons. Simplifies the pilot/motorist interface. And lets you think in terms of door-to-door guidance, not just runway-to-runway.

Fly aera. Anywhera

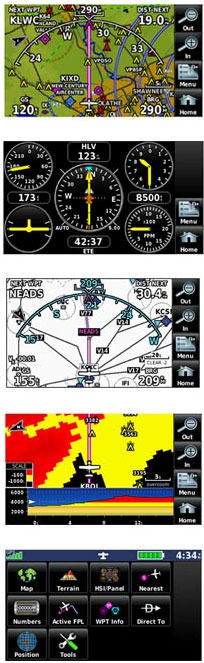

In aviation mode, the aera 500’s detailed chart-style shaded mapping and extensive terrain and aviation databases help you visualize your flight path in relation to nearby navaids, terrain, SUAs, obstructions, and so on. Plus, the addition of private airports and heliports to the database affords even more navigation and emergency “nearest” options. A database-driven terrain advisory feature offers TAWS-like color coding and pop-up alerts when possible obstructions or ground proximity conflicts loom ahead. And with terrain/obstacle data shown at standard 30 arc-second resolution, you’ll enjoy a surprising level of detail on the display. The unit’s graphical Terrain page offers both overhead and vertical profile views of the topography you’re flying over. What’s more, there’s an IFR map mode that lets you display and navigate on high or low enroute airways. You can also pull up MEAs (Minimum Enroute Altitudes) and distances between intersections by touching the airway on the map. As in all the aera models, GPS updating is provided at a super-fast 5 Hz rate. And for added safety, an optional power/data cable (sold separately) makes it easy to interface your aera 500 with the Garmin GTX 330 Mode S transponder in your aircraft, so you can access and display TIS traffic alerts in busy terminal airspace. What’s more, you can also use the aera to load communications frequencies into your Garmin SL 40 Comm or SL 30 Nav/Comm transceiver.

Built to Fly. Born to Run
Once your aircraft returns to terra firma, the fun of aera navigation continues with full automotive GPS capability and preloaded City Navigator® NT street mapping. Operating much like Garmin’s popular nüvi® line of touchscreen auto navigators, your aera 500 offers voice-guided turn-by-turn directions with text-to-speech audio technology that calls out streets by name. In addition, there’s built-in Bluetooth® support for wireless hands-free calling with your compatible mobile phone. And the aera’s built-in “points of interest” database offers helpful guidance to millions of motels, restaurants, gas stations, ATMs, and other local attractions. To further speed your transition from aircraft to automotive mode, a unique ”smart mount” for the aera offers instant clip-and-go car navigation.

For detailed specifications, click here.

Check out this quick video on the aera and its many features!



Garmin aera 500 Physical & Performance:
Unit dimensions, WxHxD:	5.3"W x 3.3"H x .9"D (13.5 x 8.4 x 2.3 cm)
Display size, WxH:	3.81"W x 2.25"H (9.7 x 5.7 cm); 4.3" diag (10.9 cm)
Display resolution, WxH:	480 x 272 pixels
Display type:	touchscreen WQVGA color TFT with white backlight
Weight:	9.5 ounces (270 g)
Battery:	removable, rechargeable lithium-ion
Battery life:	up to 5 hours (less with full backlight and options)
Waterproof:	yes (IPX7)
Voltage range:	11-35
Receiver:	high-sensitivity with WAAS position accuracy
IFR or VFR:	VFR

Garmin aera 500 Maps, Databases & Memory:
Basemap:	yes
Jeppesen® database:	yes
Types of Jeppesen databases:	full and ARTCC, FSS frequencies and final approach waypoints
Jeppesen database coverage areas:	Americas
Preloaded Obstacles database:	yes (U.S. and Europe only)
Preloaded Terrain database:	yes
Preloaded SafeTaxi™ airport diagrams:	not available
Preloaded AOPA Airport Directory:	not available
Preloaded low & high altitude enroute airways:	yes
Preloaded Garmin FliteCharts®:	no
Preloaded private airports:	yes (U.S only)
Preloaded street maps:	yes
Ability to add maps:	yes
Accepts data cards:	yes (microSD cards)
Built-in memory:	internal solid state
Waypoints/favorites/locations:	3,000 (aviation mode); 1,000 (automotive mode)
Routes:	50

Garmin aera 500 Features:
Moving map:	yes
Patented panel page:	yes
Built-in HSI (GPS-based):	yes
IFR map mode:	yes
Traffic Information Services (TIS) alerts compatible:	yes
Audible terrain alerts:	yes
Terrain resolution:	standard
Smart Airspace Feature (generates and displays altitude-sensitive alerts):	yes
Separate serial and USB interfaces:	yes
Automatic logbook:	yes
Voice prompts (e.g. "Turn right in 500 ft."):	yes (auto mode)
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."):	yes (auto mode)
3-D map view:	yes (auto mode)
Custom POIs (ability to add additional points of interest):	no
Bluetooth® wireless technology (connect to your phone for hands-free calling):	yes (auto mode)
Speed limit indicator (displays speed limit for most major roads in the U.S. and Europe):	no
FM traffic compatible:	no
Custom POIs (ability to add additional points of interest):	yes (auto mode)
XM WX Weather & Radio for U.S. compatible:	no
