Law Enforcement Only
FLIR BHM-XR+ Handheld Thermal Night Vision Cameras (Lens sold separately, See below)

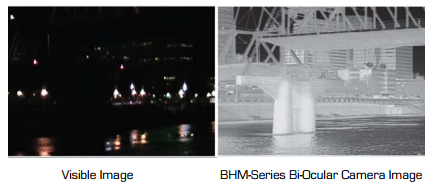

BHM-Series imagers make pictures from heat, not light, letting you see other boats, obstructions, land, buoys, and floating debris in total darkness, as well as through haze, smoke, and light fog.
High-resolution 640 × 480 thermal sensors, BHM-Series thermal imagers are the best search and rescue tools on the water, giving you the power to search for disabled vessels and people in the water regardless of lighting conditions.
With powerful interchangeable lenses, BHM-Series cameras are the most powerful handheld, battery-powered, thermal night vision cameras available, making them the right choice for use on vessels of any size, and giving you the edge in all of your nighttime travels.
Features :FLIR BHM-Series cameras are available with a variety of features:
- Rugged, all-weather design.
- Compact, easy-to-use designs.
- 640 × 480 thermal resolution.
- Interchangeable lenses from 35 mm to 100 mm.
- Thermal night vision lets you see clearly in total darkness.
- See more and get all the details with up to 4× E-Zoom.
- Capture still images and video.
BHM-Series cameras supply go-anywhere thermal night vision for everyone on the water. For more technical info, or to see a demonstration of this revolutionary new handheld thermal night vision camera, contact your FLIR representative today.
| Thermal Imaging Specifications |
| Detector Type: |
640 × 480 |
| Waveband: |
7.5 - 13.5 µm |
Start-up Time
(from Stand-by): |
< 1.5="" seconds=""> |
| User Interface |
| Power Button: |
On/Off/Stand-by |
| Picture Button: |
Still image capture and video to SD card |
| Zoom Button: |
2× & 4× E-zoom |
| Polarity: |
White Hot / Black Hot / InstAlert |
| Brightness: |
Adjusts Display Brightness |
|
| Image Presentation |
| Built-in Display: |
Color LCD Display |
| Video Output: |
NTSC or PAL composite video; RCA jack |
| Video Refresh Rate: |
<9 hz="" or="" 30="" hz="" (ntsc="" and=""> |
| Image Polarity: |
White Hot / Black Hot / InstAlert; Selectable |
| On-Screen Symbology: |
Standard |
| Other |
| SD Card: |
Stores still images and video |
| Power |
| Battery Type: |
4 AA Batteries, NiMH, Li-Ion, or Alkaline |
| Battery Life (Operating): |
>5 Hours on NiMH batteries |
| Battery Life (Stand-by): |
120 Hours on NiMH batteries |
| Environmental |
| Rating: |
IP-67, Submersible |
| Operating Temp.: |
-4°F to +140°F (-20°C to +50°C) |
| Storage Temp.: |
-40°F to +167°F (-40°C to +70°C) |
| Drop: |
1 m drop (camera body only) |
| Physical |
| Weight (incl. lens & batteries): |
.84 lb (1290 g) |
| Size (L × W × H): |
10.5” × 6.5” × 2.6” |
| Package Includes: |
Handheld Thermal Camera, Hot Shoe Charging & Video Output
Accessory, 4 Rechargeable AA Batteries, AC Power Adapter/Charger,
Neck Lanyard, DVD with Operators manual, USB Cable, RCA Video
Output Cable, SD Card, Quick Start Guide, Hardshell Case, Tactical Carry Pouch (optional) |
| Other |
| Warranty*: |
2 Year Standard; 3/10 Year w/ Registration* |
AVAILABLE LENSES (Lenses are not included with BHM camera and must be purchased separately)
| Available Lenses & Range Performance |
| Model Number: |
BHM-XR+ (35mm)
FLIR-322018112 |
BHM-XR+ (65mm)
FLIR-322019512 |
BHM-XR+ (100mm)
FLIR-322019612 |
| FOV (NTSC): |
18° × 13° NTSC |
10° × 8° NTSC |
6° × 4° NTSC |
| Detect Man (1.8m × 0.5m) |
~4,200’ (1.3 km) |
~1.4 mi (2.2 km) |
~1.8 mi (2.95 km) |
| Detect Small Vessel (4.0m × 1.5m): |
~2.4 mi (3.9 km) |
~4.0 mi (6.5 km) |
~5.5 mi (8.8 km) |
*Register camera at FLIR.com/cs/warranty to upgrade to a 3-year Parts & Labor, 10-year detector warranty for free.
