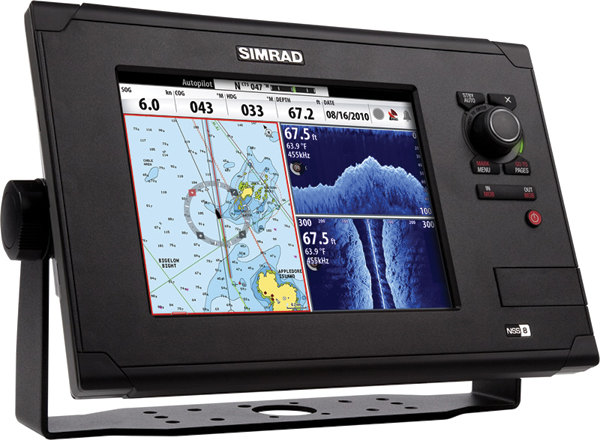

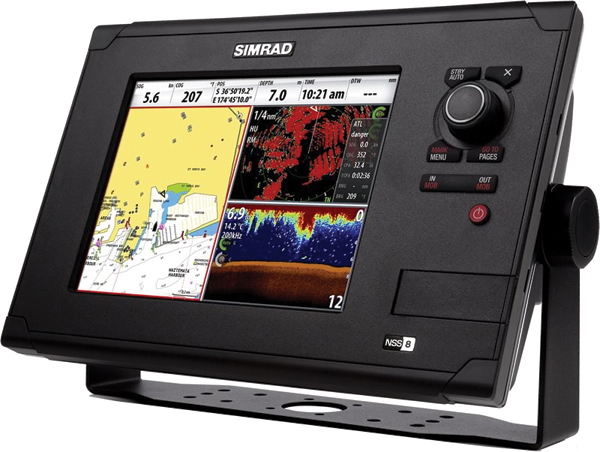

Simrad NSS8 Chartplotter | Multifunction Touch Screen Display 000-10196-001

This feature loaded, fully integrated, 8-inch touch-screen chartplotter / multifunction display with built-in GPS and performance Echosounder, and NMEA 2000® network compatibility, puts powerful navigation systems in the hands of performance-minded boaters.

Features :

• Extreme Ease of Use
• Touch Sensible™ Technology
• Powerfully Fast Charting
• GoFree™ Wireless Compatible
• Insight Genesis Ready
• Expandable
• Bright Display
• Simrad Yachting Construction
• Built-In GPS
• Built-In Echosounder
• Embedded Cartography
• Micro SD
• Smart Boat Technology

Extreme Ease of Use
Simple smartphone style menus and icons on the touch-screen guide you to the information you need, and tap, touch and swipe gestures get you there faster and easier than any competitive system.

Powerfully Fast Charting
Navigate effortlessly with premium built-in cartography. Touch the screen to mark waypoints and build routes, and pan charts with your fingertip

Expandable
Network multiple displays and performance modules effortlessly to create an unrivalled fully-integrated system.

Simrad Yachting Construction
Elegantly designed and brutally strong.

Embedded Cartography
Built-in Insight or Navionics Coastal Cartography.

NMEA 2000®
Fully compatible with all NMEA 2000® equipped units.

Touch Sensible™ Technology
Developed specifically for the marine environment for outstanding functionality in any sea state. Includes touch-screen, rotary controller and minimalist keypad.

GoFree™ Wireless Compatible
When combined with the WiFI-1 wireless module, GoFree offers connectivity between Simrad NSS Multifunction Displays, tablets and smartphones, bringing boaters an exciting new level of navigational control.

Bright Display
Unique LED backlighting technology provides a bright, clear, highly visible display which not only reduces power consumption, but also increases product life.

Built-In Echosounder
A full value package. Just add a radar for a complete navigation system.
Simply add a transducer to transform your NSS into a powerful fish finding system.

Micro SD
Upgrade your cartography with ease.

Smart Boat Technology
Transform your vessel into a "smart boat" with CZone digital switching and monitoring technology.

Overview
Description:	Touchscreen, Multifunction Display
Display Size:	8"
Screen Brightness:	1200cd/m2
Built-In Cartography:	Insight USA™
GPS Antenna:	Internal (External Optional)

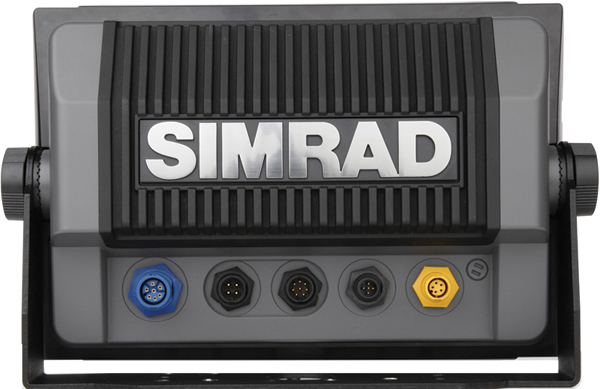

Networking Capability:	1 x NMEA2000 Micro-C 1 x NMEA0183 In/Out
Video Integration:	2 x Input
Radar Options / Features:	All/Standard
Satellite Weather:	WM-2
Echosounder Options:	Built-In
StructureScan™ Compatible:	Yes
CZone Smart Boat Integration:	Yes
Display
Backlighting Levels:	1200 nits
Display Resolution [pixels x pixels]:	800 x 600
Multi-language Display:	Yes
Display Type:	8 inch Color TFT LCD 1200cdL/m Brightness
Technical/Environmental
Operating Temperature:	-15 °C to +55°C (+5°F to +131°F)
Housing:	Plastic housing; Die cast rear heatsink
Waterproof Standard/rating:	IPX7
Product Width:	283.5 mm / 11.16 in
Product Depth:	120 mm /4.72 in
Product Height:	192 mm /7.56 in
Product Weight:	2.1 kg / 4.6 lbs
Power
Power Consumption:	15.6W or 1.2A @ 13VDC
Power Supply (Supply Voltage):	12.0 VDC-24.0 VDC (9.0 - 32.0 VDC Min-Max) vDC
NMEA 2000 Load Equivalency Number:	1
Other
Languages:	English (UK), English (US), Danish, German, French, Spanish, Italian, Portuguese, Croatian, Finnish, Icelandic, Dutch,Norwegian, Polish, Swedish, Slovenian, Russian, Ukrainian, Bulgarian
Other Features:	*Echosounder - NB. Echosounder only applies to NSS7 Ethernet - 1 port Interface (NMEA 2000) - Micro C (1) Video Input: Composite Video x (multiplexed) SD Card Slot: Micro SD (1) Certificates of Conformity: CE (EN609
Sonar
EchoSounder Frequencies:	*NSS8: 50/200 or 83/200kHz kHz
EchoSounder Max Sonar Depth [m]:	1000
EchoSounder Output Power:	Max *NSS8: Max 250W Peak to Peak (31W RMS) actual W
